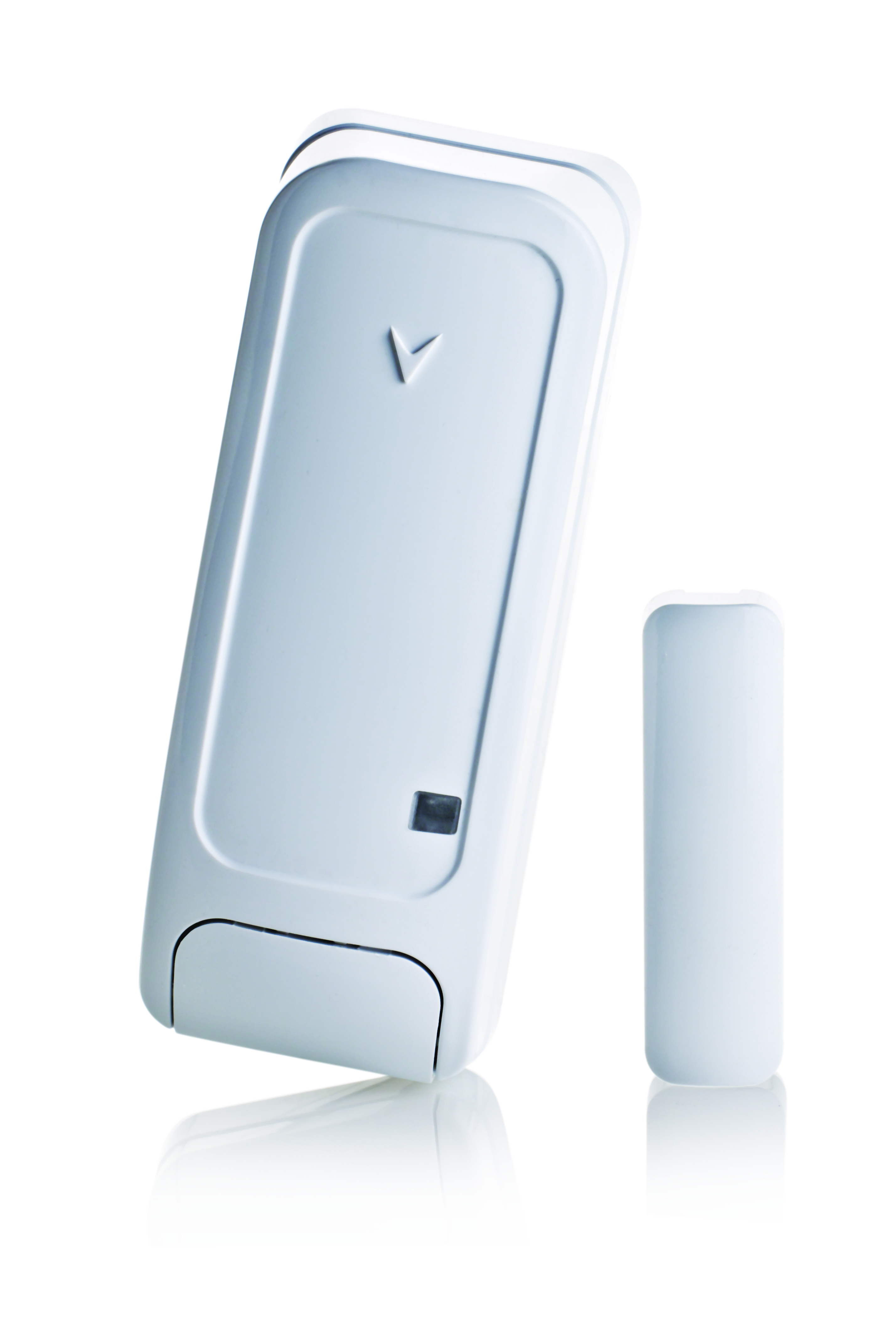

PG2 MC-302E Magnetkontakt/Universalsender m/1 inng


Door and window contact with wired input

MC-302E PG2 is a wireless magnetic connector for PowerMaster alarm systems. The magnetic contact is usually used to protect exterior doors, patio doors and openable windows. Unlike other magnetic connectors, this model is equipped with an input for wired connection that makes it possible to connect one or more wired magnetic connectors to the connector for wireless transmission to PowerMaster central


  • Designed primarily for protecting doors and windows
  • User-selectable operation of auxiliary input as NC or EOL (end-of-line loop with NC or NO sensors)
  • Transmission range is far greater than the industry standard - enabling repeater-free installations even in large premises
  • Longer battery life for up to 8 years (in typical use)
  • Visible signal quality indication shown on the device
  • PowerG two-way Frequency Hopping Spread Spectrum FHSS - TDMA technology – provides robustness and reliability closer than ever to wired systems
  • Employs the proven AES-128 (128 bit key) advanced encryption algorithm for correct message identification and protects the alarm system from code grabbing and other attacks
  • Continuously measures communication quality and automatically sets transmission power to the minimum required for reliable communication
  • Configured from the panel – no hardware switches and no need to re-open the detector once closed
  • Low-battery signaling
  • Compatible with PowerMaster residential security systems and PowerG receivers
Category Alarm
Sub-category PowerMaster
Brand Visonic
Alarm Type Magnet contacts
