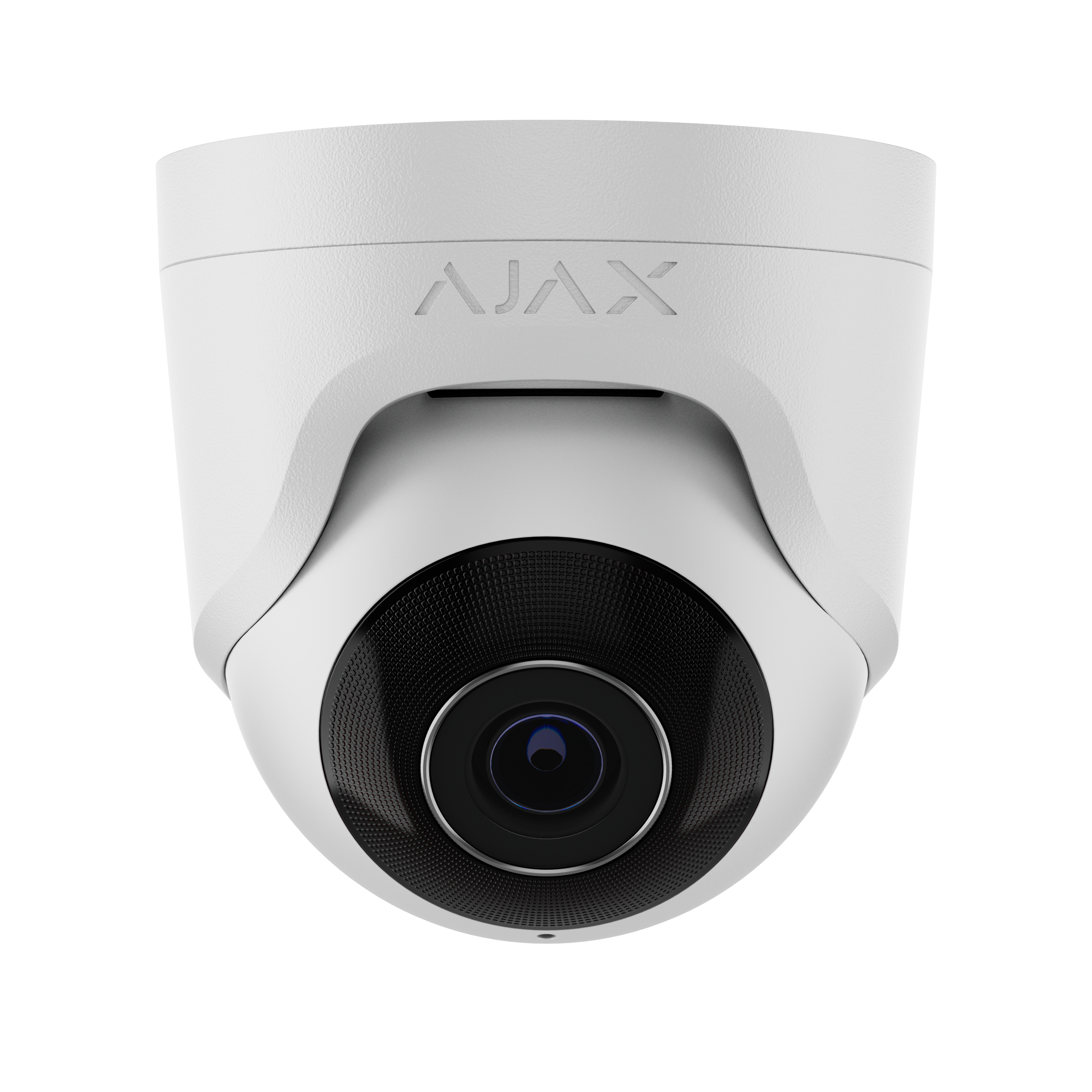

Ajax TurretCam (5 Mp/2,8 mm) White
10064923
TurretCam (5 MP2.8 mm)
Wired security IP camera with up to 2880 × 1620 px resolution and 100°–110° viewing angle
IP65
Compatibility
Control panels
Video recorders
NVR
Models
5 Mp/2.8 mm
- Resolution up to 2880 × 1620 px
- Frame rate 25 FPS
- Viewing angle from 100° to 110°
5 Mp/4 mm
- Resolution up to 2880 × 1620 px
- Frame rate 25 FPS
- Viewing angle from 75° to 85°
8 Mp/2,8 mm
- Resolution up to 3840 × 2160 px
- Frame rate 20 FPS
- Viewing angle from 100° to 110°
8 Mp/4 mm
- Resolution up to 3840 × 2160 px
- Frame rate 20 FPS
- Viewing angle from 75° to 85°
Videostream
Video protocol
JetSparrowFast and encrypted peer-to-peer video protocol developed by Ajax Systems.Storage
NVR
microSDMemory storage device not included.Codecs
H.265
H.264Dynamic ranges
HDR
WDRCommunication channel
Ethernet
up to 100 MbpsKey features
Motion detection
The camera has software to detect motion in the frame.Object detection
using AI- Humans.
- Pets.
- Vehicles.
Smart IR illumination
up to 35 mAutomatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions.Active zone
The camera focuses on certain areas of its view where the device will detect motion.Visual verification of Ajax alarms
The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app.Microphone
With the corresponding settings, the camera records sound at the object.Power supply
Power supply unit
12 V⎓ ± 20%, 1 АUp to 7.5 W of mains power consumption.Ethernet port
PoE Standard 802.3atSabotage protection
mTLS
Encrypted connection for data protection.Authentication
via CloudWithout local access rights.Secure Boot
Protection against firmware spoofing.OTA signature verification
Secure automatic firmware update.Privacy
Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.Enclosure
Dimensions
103 × 98 × 98 mmWeight
496 gOperating temperature range
from −25 °C to +40 °COperating humidity
up to 90%Protection class
IP65
| Category | Alarm |
|---|---|
| Sub-category | Ajax CCTV |
| Brand | Ajax |
| Color | Hvit |
