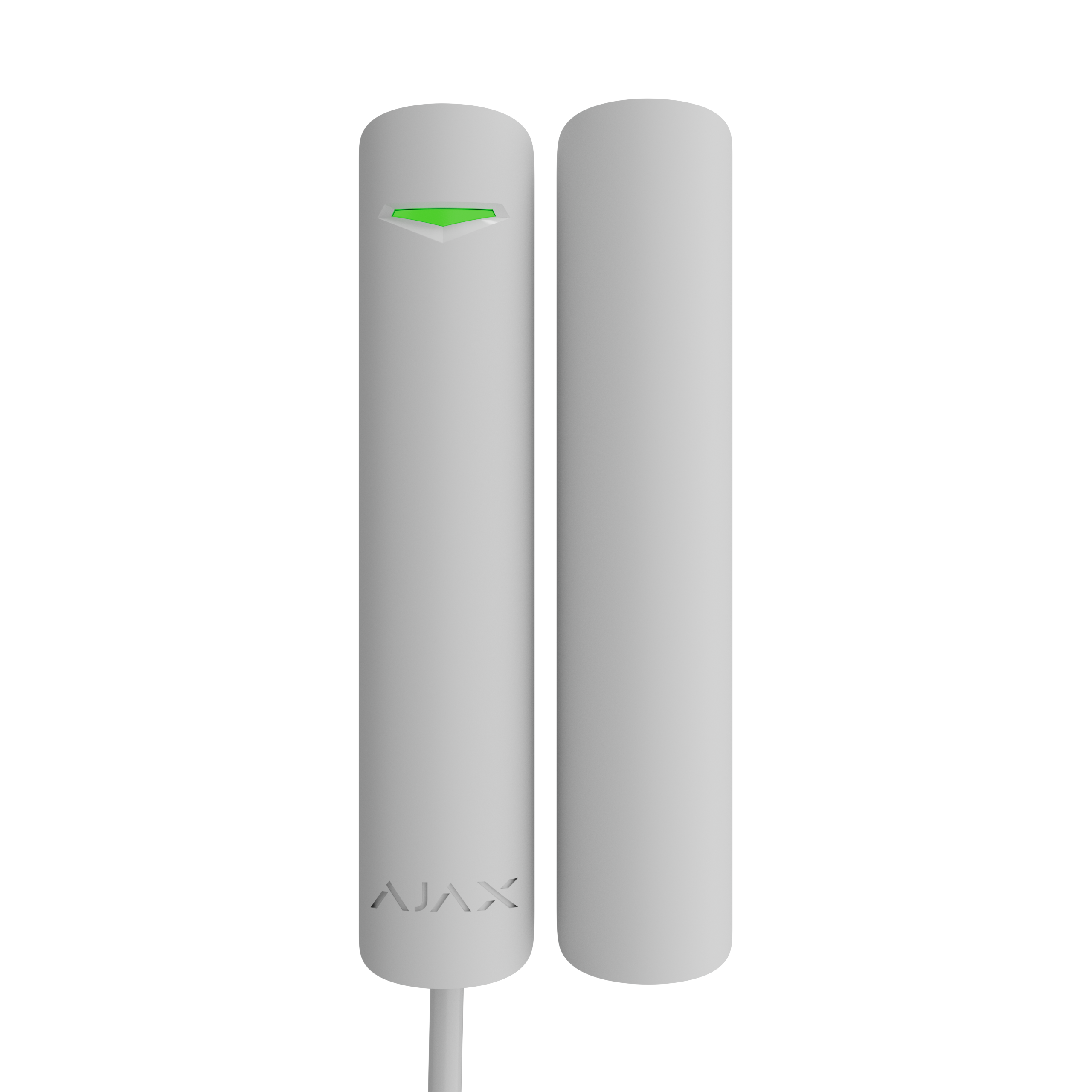

Fibra G3 DoorProtect white
10061340
DoorProtect G3 Fibra
Opening detector with shock, tilt, and magnetic masking sensors
Compatibility
Communication
Fibra communication technology
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection.
Key features:
- Two-way communication.
- Advanced anti-sabotage protection.
- Instant notifications.
- Remote configuration via the Ajax apps.
Line connection
4-core cable
Fibra line length
up to 2,000 meters
When using the U/UTP cat.5 twisted pair cable.
Encrypted communication
Detection
Sensitive elements
1 accelerometer
1 magnetic masking sensor
2 reed switches
1 magnetic masking sensor
2 reed switches
Protection against reed switch chattering
The detector ignores vibrations lasting up to 0.15 s.
nput to connect an additional detector
Wired detector with the normally closed (NC) contact type.
Shock sensor sensitivity
3 levels
Adjusted by a PRO or a user with admin rights in the Ajax app.
Option to ignore single shock
Adjusted by a PRO or a user with admin rights in the Ajax app.
Tilt sensor activation threshold
from 5° to 25°
Adjusted by a PRO or a user with admin rights in the Ajax app.
Spacers
2 pcs.
Are needed to install the detector or the magnet on a metal surface, as they help to reduce the distance between the detector and the magnet. You can use one or two spacers at once.
Chime
When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered.
Sabotage protection
Tamper alarm
2 tampers
Notifications on attempts to detach the detector from the surface or open the front lid.
Magnetic masking sensor
The device detects an attempt to mask the main magnet of DoorProtect G3 Fibra with a fraudulent magnet.
Holding screw
to secure the detector on the mounting panel
Protection against spoofing
device authentication
Power supply
Fibra line power supply
5−30 V⎓, up to 35 mW
The detector is powered by the hub.
Enclosure
Detector dimensions
102 × 21 × 19.2 mm
Magnet dimensions
102 × 21 × 19.2 mm
Detector weight
62 g
Operating temperature range
from −10 °C to +40 °C
Operating humidity
up to 75%
| Category | Alarm |
|---|---|
| Sub-category | Innbruddsalarm |
| Brand | AJAX |
| Alarm Type | Magnetkontakt |
| Color | Hvit |
